Technical Specifications

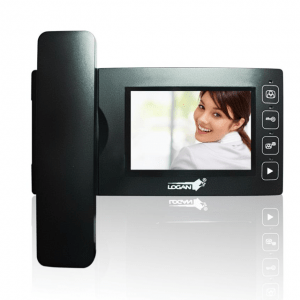

Model: LGKDPCC1

Specifications

Monitor

  • Screen: 4.3″ TFT Color Digital Screen
  • Resolution: 480 x 272 (RGB)
  • Video input: 1Vp-p
  • Call tone: “Ding Dong” Chime
  • Operative temperature: 5° F ~ 122° F / -15° C ~ 50° C
  • Power comsumption: Stand By: 2W / Working: 8W
  • Power supply: DC 13.5V
  • Mic sensitivity: 36±2dB

Camera

  • Resolution: 420 TVL
  • Field of View: 53° Degrees
  • Lamp-House at Night: Infrared LED
  • Lens Mount: 3,6mm
  • Power Consumption: Working: <2W
  • Power Supply: 12V DC (Supplied by the monitor)
  • Operative Temperature: 5° F ~ 122°F / -15° ~ 50°C
