Technical Specifications

Model: L-BT1290

General

  • Nominal Voltage 12V
  • Rated Capacity (20hour rate) 9Ah

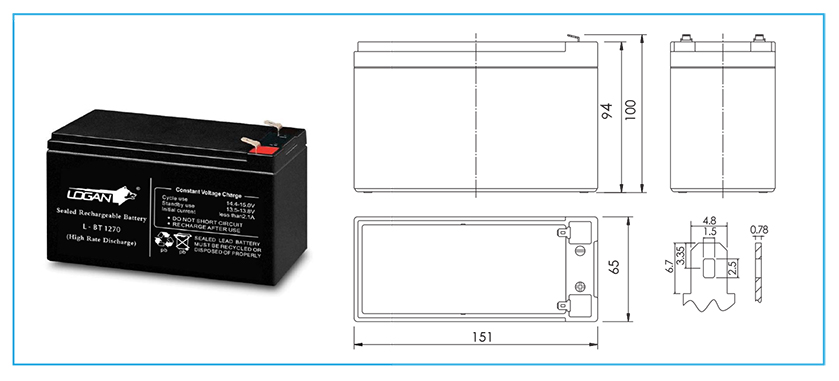

Dimensions

  • Total Height (with terminals): 3,94 inches (100mm)
  • Height: 3,70 inches (94mm)
  • Lenght: 5,94 inches (151mm)
  • Width: 2,56 inches (65mm)
  • Weight: 5,52 pound (2,35 kg

Characteristics

Capacity at 77 ºF (25ºC)

Hour Rate Rated Capacity
20hrs (0,23A) 9,0 Ah
10hrs (0,42A) 8,3Ah
5hrs (0,72A) 7,2 Ah
1hrs (2,7A)  5,4 Ah
15min (7,92A) 3,9 Ah

Capacity affected by Temperature (Hour rate 20hrs)

104ºF (40ºC) 102%
77ºF (25ºC) 100%
32ºF (0ºC) 85%
5ºF (-15ºC) 65%

Self Discharge 77ºF (25ºC)

Capacity after 3 months storage 91%
Capacity after 6 months storage 81%
Capacity after 12 months storage 60%
  • Max Discharge Current 135 A (5S)
