1080P 4 Channels NVR + 4 IP Wireless 2MPX Bullet Cameras + 1TB HDD

  1. Home
  2. Kits
  3. Wireless Kits
  4. 1080P 4 Channels NVR + 4 IP Wireless 2MPX Bullet Cameras + 1TB HDD

Filter by:

Technical Specifications

Model: LW4DN4W2B+1TB

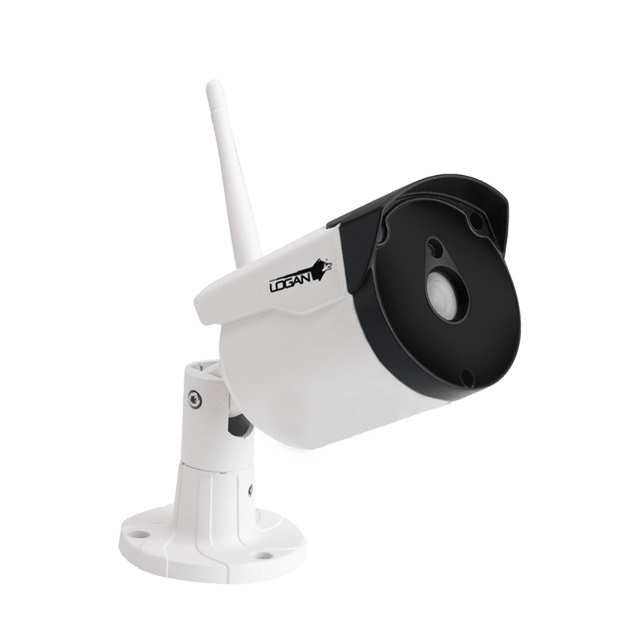

High Quality FULL HD Wireless IP Camera Ideal suited for small business, factories and home. You can watch rooms, babies pets, elders with sharp HD video and clear voice sound.

Camera Specifications

  • Image Sensor: 1/2.8 SC2035 CMOS Sensor
  • Camera Resolution: 2 Megapixel
  • Infrared LED: 3 pcs LED ARRAY
  • Lens Mount: 4mm fixed lens
  • Format Wireless: IP
  • Field of View: 60° Degrees
  • Minimum Illumination: 0.01 LUX (IR on)
  • IR Cut Filter: Yes
  • Night Vision Distance: 82ft / 25m
  • Operative Temperature: 14° ~ 122°F/ – 10° ~ 50°C
  • Ingress Protection: IP66
  • Power Supply: DC 12V/1A (IR on)

NVR Specifications

NVR

  • Video Input: 4CH Wireless Single
  • Video Output: HDMI, VGA
  • Display Split: 1/4 Screen

Recording

  • Record Quality: Up to 1080P (1920 x 1080) // 4ch bandwidth 20Mbps
  • Video Compression: H.264 (High Profile)
  • Record Mode: Auto/Manual/Motion detection/Alarm

Playback

  • Simultaneously Playback: 1/4 Channels
  • Backup Mode: USB Device, Web Browser, Mobile App
  • Playback Quality: Up to 1080P (1920 x 1080)

External Ports

  • USB Port: 2 USB 2.0 port
  • Ethernet: 1 RJ-45 Port (10/100Mbps)
  • WIFI: 1 Wifi Interface
  • Transmission Range: 197ft / 60m Open Range

Storage

  • HDD Port: 1 SATA Port
  • HDD Capacity: Up to 4TB

General

  • Power Supply: DC 12V/3A
  • Compatibility For: iOS, Android
What's in the box
  • (1) 720P 4 Channels NVR
  • (4) 720P 1MPX IP Wireless Bullet Cameras
Downloads

Users Manual and Tutorials

Download Download

Descargar Descargar
