Technical Specifications

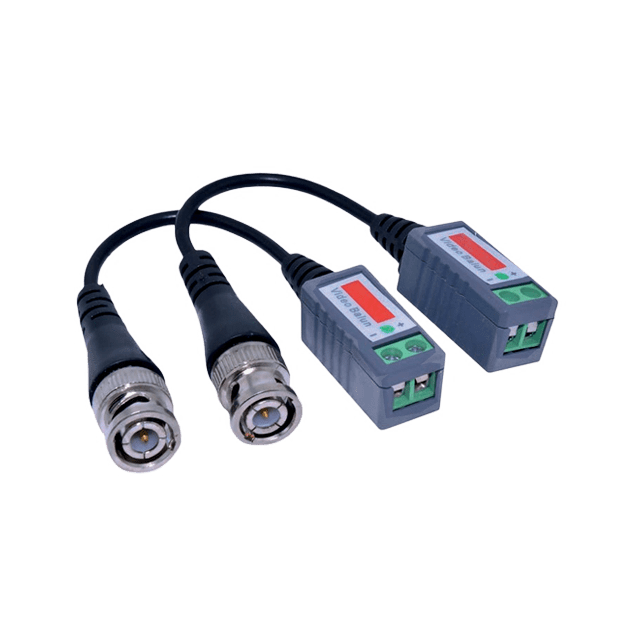

Model: L-BB02

Specifications

  • Balun Type: Passive
  • Wire Type UTP Category 3, 4, 5, 5e, 6, UTP 2-24 AWG or better
  • Video Frequency: DC-8 MHz, Differential-mode rejection: 15KHz-6MHz 60 dB
  • Impedance: BNC 75 Ohms, Terminal 100 Ohms
  • Video System: NTSC, PAL, SECAM
  • Operating Temperature: 14°F to 158°F / -10°C to 70°C
  • Storage Temperature: -22°F to 158°F / -30°C to 70°C
  • Humidity: 0 to 95%
  • Material ABS: Plastic
