1080P 8 Channels Wireless NVR + 8 Wireless 1MPX Bullet Cameras

  1. Home
  2. Kits
  3. Wireless Kits
  4. 1080P 8 Channels Wireless NVR + 8 Wireless 1MPX Bullet Cameras

Filter by:

Technical Specifications

Model: LW881BN

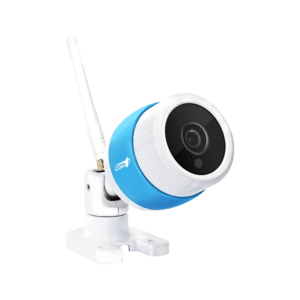

High Quality HD Wireless IP Camera Ideal suited for small business, factories and home. You can watch rooms, babies pets, elders with sharp HD video and clear voice sound.

Camera Specifications

  • Image Sensor: 1/4 OV9712 CMOS Sensor
  • Camera Resolution: 1 Megapixel
  • Effective Pixels: 1280(H) x 720(V)
  • Infrared LED: 3 pcs LED ARRAY
  • Lens Mount: 4mm fixed lens
  • Format Wireless: IP
  • Field of View: 60° Degrees
  • Minimum Illumination: 0.01 LUX (IR on)
  • IR Cut Filter: Yes
  • Night Vision Distance: 82ft / 25m
  • Operative Temperature: 14° ~ 122°F/ – 10° ~ 50°C
  • Ingress Protection: IP66
  • Power Supply: DC 12V/1A (IR on)

NVR Specifications

NVR

  • Video Input: 8CH Wireless Single
  • Video Output: HDMI, VGA
  • Display Split: 1/4/8 Screen

Recording

  • Record Quality: Up to 1080P (1280 x 720) // 8ch bandwidth 20Mbps
  • Video Compression: H.264 (High Profile)
  • Record Mode: Auto/Manual/Motion detection/Alarm

Playback

  • Simultaneously Playback: 1/4/8 Channels
  • Backup Mode: USB Device, Web Browser, Mobile App
  • Playback Quality: Up to 1080P (1280 x 720)

External Ports

  • USB Port: 2 USB 2.0 port
  • Ethernet: 1 RJ-45 Port (10/100Mbps)
  • WIFI: 1 Wifi Interface
  • Transmission Range: 197ft / 60m Open Range

Storage

  • HDD Port: 1 SATA Port
  • HDD Capacity: Up to 4TB

General

  • Power Supply: DC 12V/3A
  • Compatibility For: iOS, Android
What's in the box
  • (1) 1080P 8 Channels Wireless NVR
  • (8) 1MPX Wireless Bullet Cameras
Downloads

Manual and Tutorials

Datasheets

 Download

 Descargar

NVR Quick Guide

Compatible with
