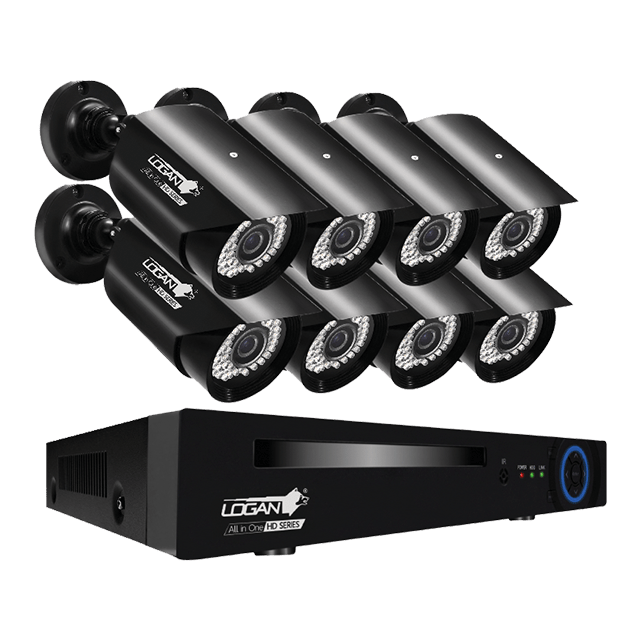

1080P All in One Hybrid 8 Channels DVR + 8 Bullet 2MPX All in One Cameras

  1. Home
  3. Kits
  5. All in One Kits
  7. 2MPX All in One Kits
  9. 1080P All in One Hybrid 8 Channels DVR + 8 Bullet 2MPX All in One Cameras

Filter by:

Model: LX882BN

Video

  • Video Input:
    • DVR: 8CH 1080P
    • Hybrid: 4CH 1080P + 4CH IP 1080P
    • NVR: 8CH IP 1080P / 4CH 3MPX / 4CH 5MPX
  • Video Output: VGA, HDMI
  • Display Resolution Up to 1080P (1920 x 1080)
  • Display Split:
    • DVR: 1/4/8/9 Screen
    • Hybrid: 1/4/8/9 Screen
    • NVR: 1/4/8/9 Screen

Audio

  • Audio Input: 8 Channel RCA
  • Audio Output: 1 Channel RCA

Recording

  • Record Quality: Up to 1080P DVR mode, up to 1080P NVR mode
  • Video Compression: H.264 (High Profile)
  • Record Mode: Manual / Schedule / Motion / Alarms

Playback

  • Simultaneously Playback: 1/2/4 Channels
  • Backup Mode: USB Device, Web Browser, Mobile App
  • Playback Quality: Up to 1080P (1920 x 1080)

External Ports

  • USB Port: 2 Ports, USB 2.0
  • RS485: 1 Port for PTZ Control
  • Ethernet: 1 RJ-45 Port (10/100Mbps)

Storage

  • HDD Port: 2 SATA Port
  • HDD Capacity: Up to 8TB

General

  • Power Supply: DC 12V/4A
  • Video System: NTSC/PAL Switch Selectable
  • Remote Access: Cloud System For Remote Access, NO Port Mapping
  • Compatibility For: iOS, Android
  • Compatible Video Format: AHD / TVI / CVI / CBVS

Camera

  • Image Sensor: 1/3″ AR0237 CMOS/1080P
  • Camera Resolution: 2 Megapixel
  • Effective Pixels: 1920(H) x 1080(V)
  • Infrared LED: 36 pcs
  • Lens Mount: 3,6mm
  • Format: AHD/TVI/CVI/CBVS
  • Field of View: 70° Degrees
  • Minimum Illumination: 0 LUX (IR on)
  • IR Cut Filter: Yes
  • Night Vision Distance: 82ft / 25m
  • Shutter Speed: (1/60 sec-1/100,000 sec)
  • Operative Temperature: 14° ~ 122°F/ – 10° ~ 50°C
  • Ingress Protection: IP66
  • Power Supply: DC 12V/320mA (IR on)
