Technical Specifications

Model:  L-DX841M-ND

High-resolution analog HD systems have evolved into different variants, incompatible with each other, such as HD-TVI, AHD and HD-CVI. This has caused that the diverse technologies devices can not compatible. That is why LOGAN offers a new series of All-In-One cameras that allow you to operate in each and every HD protocol variants. Therefore, in the same camera we can select HD-TVI, AHD, HD-CVI and even analog output PAL / NTSC and this can be done without having to enter the on-screen menu. It is only necessary to hold down the joystick button on the cable for 5 seconds for the desired technology: TVI (right), CVI (bottom), AHD (left), composite video (up). By default all-in-one cameras come in AHD.

This reports great benefits when installing larger CCTV systems from various protocols, besides the comfort that supposes for the technicians to carry spare cameras without worries about the type of technology that appears in the installation.

Video

  • Video Input:
  • DVR: 8CH 1080N
  • Hybrid: 4CH 1080N + 4CH IP 960P
  • NVR: 16CH IP 1080P / 9CH IP 1080P / 16CH IP 960P / 4CH IP 5MPX
  • Video Output: VGA, HDMI
  • Display Resolution: Up to 1080P (1920 x 1080)
  • Display Split:
  • DVR: 1 /4/9 Screen
  • Hybrid: 1 /4/9 Screen
  • NVR: 1 /4/9/16 Screen

Audio

  • Audio Input: 4 Channel RCA
  • Audio Output: 1 Channel RCA

Recording

  • Record Quality: Up to 1080N DVR mode, up to 1080P NVR mode
  • Video Compression H.264 (High Profile)
  • Record Mode: Manual / Schedule / Motion / Alarms

Playback

  • Simultaneously Playback: 1 /2/4 Channels
  • Backup Mode: USB Device, Web Browser, Mobile App
  • Playback Quality: Up to 1080P (1920 x 1080)

External Ports

  • USB Port: 2 Ports, USB 2.0
  • RS485: 1 Port for PTZ Control
  • Ethernet: 1 RJ-45 Port (10/100Mbps)

Storage

  • HDD Port 2 SATA Port
  • HDD Capacity Up to 8TB

General

  • Power Supply: DC 12V/3A
  • Video System: NTSC/PAL Switch Selectable
  • Remote Access: Cloud System For Remote Access, NO Port Mapping
  • Compatibility For: iOS, Android GENERAL

Camera

  • Image Sensor: 1 /4″ OV9732 CMOS/720P
  • Camera Resolution: 1 Megapixel
  • Effective Pixels: 1280(H) x 720(V)
  • Infrared LED: 36 pcs
  • Lens Mount: 3,6mm
  • Format: TVI
  • Screen Field of View: 60° Degrees
  • Video Output: 1CH BNC
  • Minimum Illumination: 0 LUX (IR on)
  • IR Cut Filter: Yes
  • Night Vision Distance: 66~82ft / 20~25m
  • Shutter Speed: 1 /60s-1 /67,500s
  • Operative Temperature: -4° ~ +131° F/ -20° ~ +55° C
  • Ingress Protection: IP66
  • Video System: NTSC
  • Power Supply: DC 12V/320mA (IR on)
What's in the Box

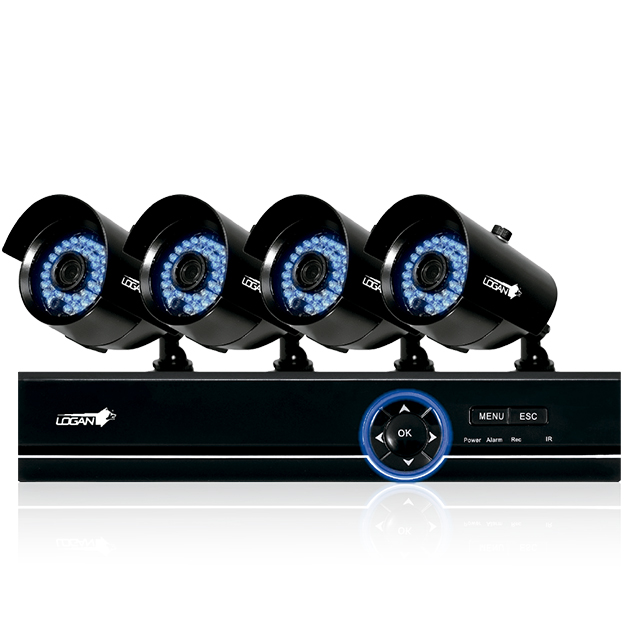

  • (1) 8 Channels DVR
  • (4) 1MPX 720P TVI Bullet Cameras
  • (4) BNC Cables of 60ft / 18,3m
  • (1) Splitter with 9 ways
  • (1) Mouse
  • (1) AC 100/240V Power Adapter
  • (1) Ethernet Cable
  • (1) Quick Guide
  • (2) Caution Sticker + 1 Installation CD
  • (1) Remote control
