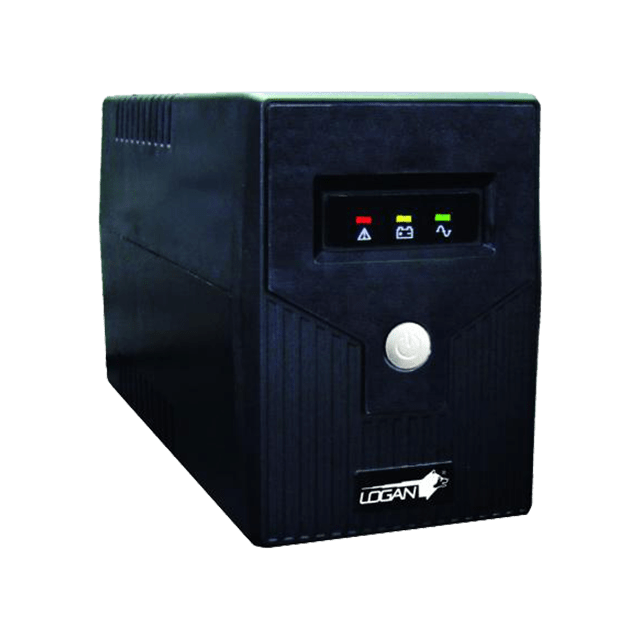

750VA Voltage Regulator

  1. Home
  2. Devices
  3. 750VA Voltage Regulator

Filter by:

Technical Specifications

Model: L-PW750-PLUS

General

  • Capacity: 750VA

Input

  • Voltage: 100/240V AC
  • Voltage Range: 89-145V AC
  • Frequency Range: 60 o 50 Hz (auto recognition)

Output

  • AC Voltage Regulation: (Battery Mode) ±10%
  • Frequency Range: (Battery Mode) 60 o 50 Hz ±1Hz
  • Transfer time: Typical 2-6 ms
  • Waves: (Battery Mode) Simulated Sine Wave

Battery

  • Voltage: 12V DC
  • Dimensions: D x W x H (mm) 298x101x142

Enviromental Specifications

  • Humidity: 0-90% (unfused)
  • Temperature: 0-40ºC
  • Noise level: Less than 40dB
