Technical Specifications

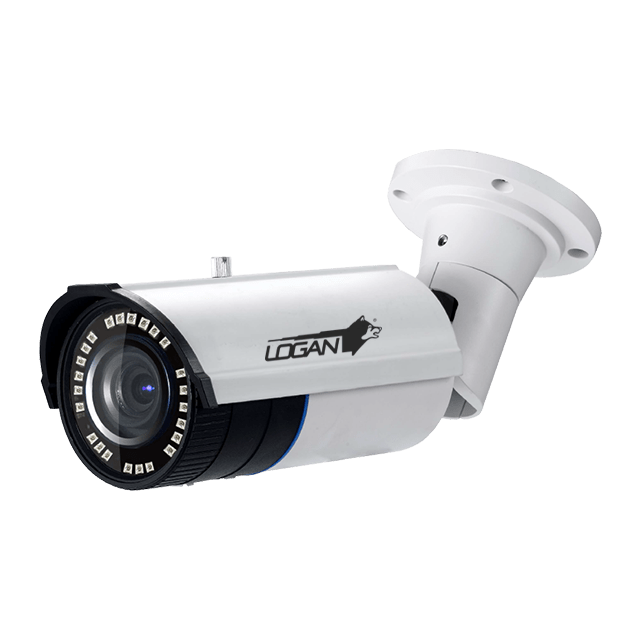

Model: RL-TL585DS-LH3548

Camera Specifications

  • Image Sensor: 1/2.5″ CMOS
  • Camera Resolution: 5 Megapixel
  • Effective Pixels: 2560(H) x 1920(V)
  • Infrared LED: 24 SMD pcs
  • Lens Mount: 2.8-12 mm Varifocal
  • Format: TVI
  • Video Output: 1CH BNC
  • Field of View: 25-90° Degrees
  • Minimum Illumination: 0 LUX (IR on)
  • IR Cut Filter: Yes
  • Night Vision Distance: 98-131ft / 30-40m
  • Shutter Speed: (1/60 sec-1/100,000 sec)
  • Operative Temperature: 14° ~ 122°F/ – 10° ~ 50°C
  • Ingress Protection: IP66
  • Power Supply: DC 12V/320mA (IR on)
