Technical Specifications

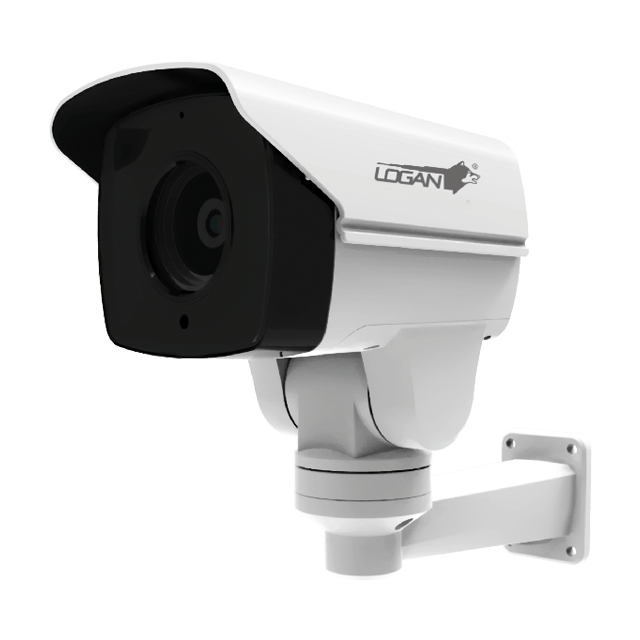

Model: LT2L

These are bullet type cameras monitoring elegant offering excellent resolution in variable lighting conditions consisting of a high-performance sensor 1/3″ CMOS 1080P and a resolution of 2 Megapixels. The weather resistant housing (IP66 protection) and anti-vandal ensures reliable video surveillance for a variety of indoor and outdoor applications. The camera is available with a variable lens 2.8 to 12mm obtained 4X Optical Zoom and has 2pcs Array LEDs offer up to 40m (131ft) of night vision.

Camera Specifications

  • Image Sensor: 1/3″ AR0237 CMOS/1080P
  • Camera Resolution: 2 Megapixel
  • Effective Pixels: 1920(H) x 1080(V)
  • Infrared LED: 2 pcs LED ARRAY
  • Lens Mount: 2,8-12mm, 4x Optical Zoom, 3x Digital Zoom
  • Pan & Tilt: Yes
  • Format: TVI
  • Field of View: 22°-94° Degrees
  • Video Output: 1CH BNC



  • Minimum Illumination: 0 LUX (IR on)
  • IR Cut Filter: Yes
  • Night Vision: Distance 131ft / 40m
  • Shutter Speed: NTSC (1/60 sec-1/100,000 sec)
  • Operative Temperature: -4° ~ +131° F/ -20° ~ +55° C
  • Ingress Protection: IP66
  • Signal System: PAL/NTSC
  • Power Supply: DC 12V/1A (IR on)
