Technical Specifications

Model: L-I1720-B

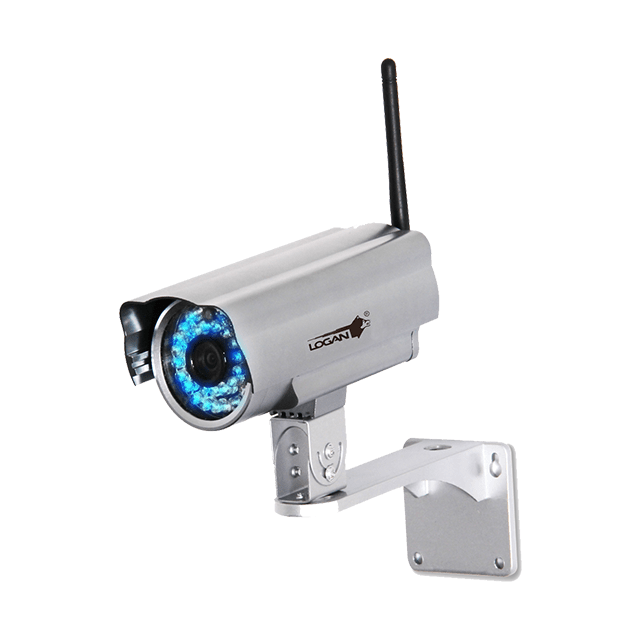

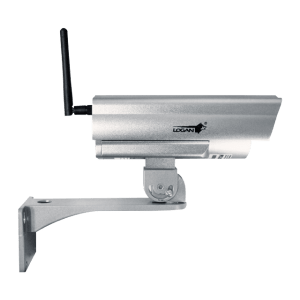

720p HD outdoor IP camera is a complete video surveillance network system ready to use. This camera takes the high performance Logan technology to every home, office and business, this camera brings a cheap solution for a big number of environments. The camera has an1/4” HD CMOS sensor. Built in infrared LEDs allows a quality night vision surveillance of up to 20 m (66 ft) in darkness. The camera can be connected wireless for an easier installation

Specifications

  • Image Sensor: 1/4” Color CMOS, 720P
  • Camera Resolution: 1 Megapixel
  • Effective Pixels: 1280(H) x 720(V)
  • IR LED: 36 pcs
  • Lens Mount: 6mm
  • Angle of Vision: 44° Degrees
  • Video Output: RJ-45, WiFi
  • Minimum Illumination: 0-5 LUX (IR on)
  • IR Cut Filter: Yes
  • Night Vision Distance: 66ft / 20m
  • Shutter Speed: NTSC (1/60 seg-1/100,000 seg)
  • Operative Temperature: + 14° ~ + 122°F/ – 10° ~ + 50°C
  • Ingress Protection: IP66
  • Ethernet Port: 1 RJ-45 Port (10/100Mbps)
  • Memory Card: Support up to 32GB (Not Included)
  • Compatibility for: iOS, Android
  • Power Supply: DC 12V/1A
