Technical Specifications

Models:

  • LP2WMCS
  • LP4WMCS
  • LP8WMCS

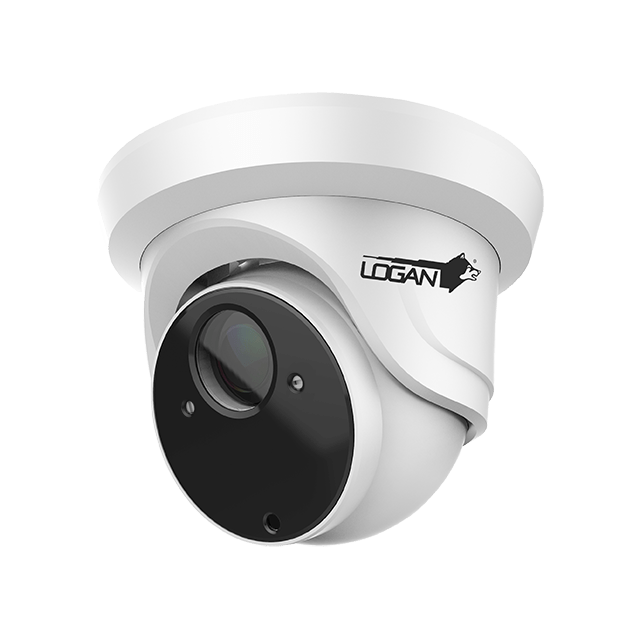

High Quality HD Wireless IP Camera Ideal suited for small business, factories and home. You can watch rooms, babies pets, elders with sharp HD video and clear voice sound.

Camera

  • Image Sensor: 1/2,9″ Progressive CMOS
  • Camera Resolution: 2 Megapixel
  • Effective Pixels: 1920(H) 1080(V)
  • Infrared LED: 40pcs(SMD)
  • Lens Mount: 2.8 ~ 12 mm (varifocal) Manual 4x Zoom Óptico, 3x Zoom Digital

Image settings and Features

  • Shutter Speed: 1/5 ~ 1/20000s
  • Backlight: Enable/Disable
  • Day & Night: IR cut filter with auto switch/ IR cut delay
  • Wide Dynamics Range: 30dB
  • Night Vision Distance: Up to 45m
  • Minimum Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
  • Digital Noise Reduction: 3D Disable/ Auto/ Manual
  • Defog Mode: Disable/ Auto/ Manual
  • Privacy Zone: Up to 4 zones
  • Roi (Region Of Interest): Up to 8 regions, ROI level can be adjusted

Video

  • Compression Standard: H.265/H.264
  • Field of View: 31°-104° Degrees
  • Mainstream: 2MP(1920X1080)/960P(1280X960)/ 1MP(1280X720) /1-30fps)
  • Substream: 720P (1280X720)/ VGA(640X480)/ QVGA (320X240) (1-30fps)
  • Mobile stream: VGA(640X480) / QVGA (320X240) (1-30fps)
  • Image settings: Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or via web browser
  • Recording Mode: Continuous/ Smart Scheduled / Motion Detection/ Alarm Out/Pre-recording can be setup for main & substream) Record to a compatible NVR/NAS device/ Local PC

Network & Advanced

  • Interface: RJ45 10M / 100M
  • System Compatibility: ONVIF (Ver 2.6)
  • Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
  • Security & Videos Analytics: Triple transmission/ Password protection/ Privacy mask/ IP address filtering/ Motion detection alerts and alerts, camera view manipulation/ Intelligent video analysis (perimeter intrusion, cross line, stationary object) Daily reports/ Wekly/ Monthly/ Yearly (lists, histogram, graph)
  • Mobile views: Supported (compatible for iOS, Android)
  • Video management software: Compatible with Windows PC, Apple Mac

General

  • PoE: Yes
  • Ingress Protection: IP66 with Vandalproof IK10
  • Operative Temperature: -30 +55°C
  • Power Supply: DC 12V/POE (7W)
