Technical Specifications

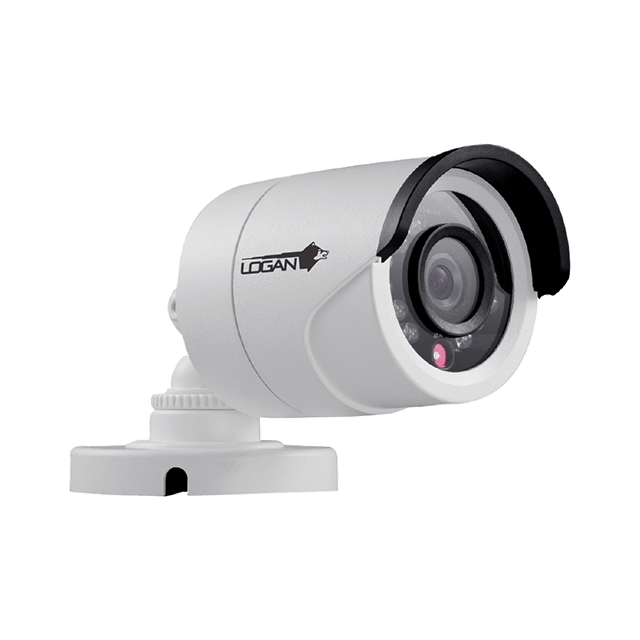

Model: LX2XBCH

Camera

  • IImage Sensor: 2MP CMOS Image Sensor
  • Signal System: PAL/NTSC
  • Frame rate:
    • TVI: 2MP@30fps
    • CVI: 2MP@25fps
    • AHD: 2MP@30fps
    • CVBS: 960H P/N
  • Resolution: 1920 (H) × 1080 (V)
  • Lens: 2.8 mm
  • Horizontal Field of View: 92°(2.8 mm)
  • Day & Night: IR cut filter with auto switch

Menu

  • AGC, BLC, White Balance: Support
  • Language: English
  • Functions Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

  • Video Output: 1 HD analog output
  • Switch Button: TVI/AHD/CVI/CVBS

General

  • Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Consumption: 12V DC Max. 0,5 A
  • Protection Level IP66
  • Material: Metal
  • Communication: Up the coax (UTC control)
